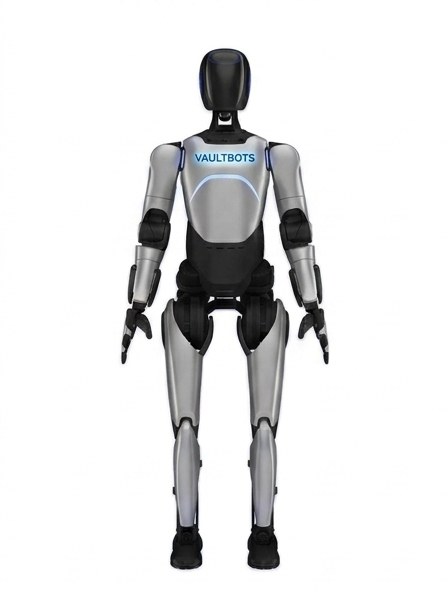

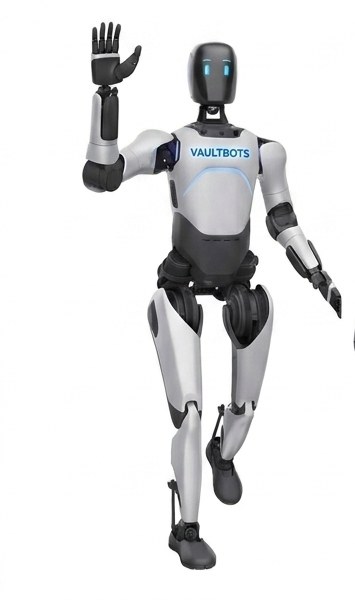

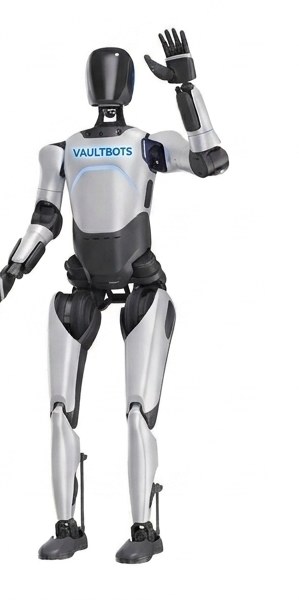

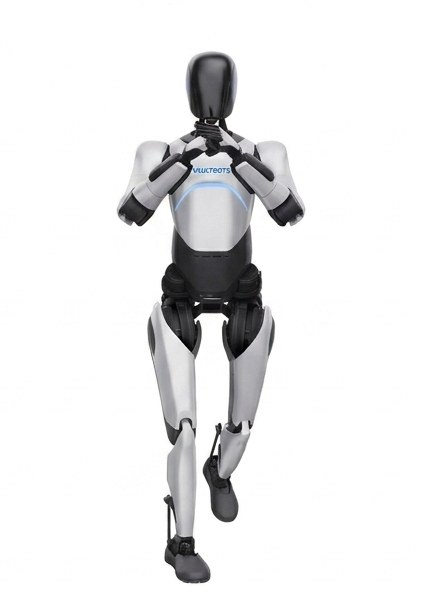

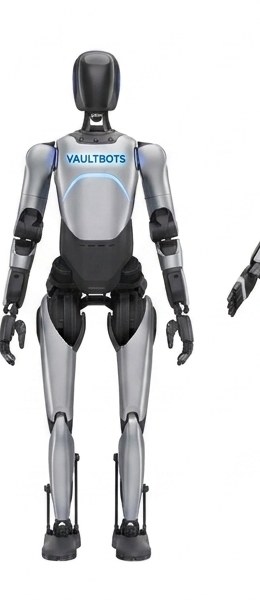

VaultBot A2
For the operations that can't slow down.
Starting at
$105,000
1 / 5
Overview
The Elite is engineered for continuous duty cycles in logistics, manufacturing, and warehousing. Hot-swappable batteries enable 24-hour deployment.
Specifications
Height
169 cm
Size
169(H) × 75(W) × 30(L) cm
Net Weight
≈ 69 kg
Active Degrees of Freedom
7×2 DOF for both arms, 6×2 DOF for both legs, 2 DOF for the head, and 6×2 DOF for dexterous hands
Endurance
Standing + voice broadcast: 3h, Walking: 1.5h
Battery Capacity
14.4 Ah
Charging Time
2h
Charging Power
≤ 500W
Charging Voltage
48V DC
Working Temperature and Humidity
0 ~ 40°C, relative humidity 10% ~ 90%, no condensation
Storage Temperature and Humidity
−20°C to 70°C, relative humidity 10% to 90%, no condensation
IP Rating
Joint Module: IP5X
Minimum Passing Width
Ontology remote control: > 1m, Navigation through minimum width: > 2m
Maximum Obstacle Crossing Height
20 mm
Maximum Movement Speed
Maximum speed 0.8 m/s, daily use ≤ 0.6 m/s
Mobile Mode
Supports translation, skew, and in-place rotation
Communication Protocol
TCP/IP
Communication Module
WiFi, 4G/5G Mobile Network
Basic Computing Power Board
16-core high-performance CPU
High Computing Power Board
Jetson AGX Orin 64G
Dexterous Hand
Grip weight (palm down): < 3kg, Hook grip weight (palm up): < 8kg
Single-arm Rated Load
2 kg
End Linear Velocity
1 m/s
Arm Movement Space
J1 (Shoulder pitch): ±170°, J2 (Shoulder roll): −30°~95°, J3 (Shoulder yaw): ±170°, J4 (Elbow pitch): −1°~118°, J5 (Wrist roll): ±170°, J6 (Wrist pitch): ±45°, J7 (Wrist yaw): ±30°
Legroom (with some deviation)
J1 (Hip roll): −37~40°, J2 (Hip yaw): ±75°, J3 (Hip pitch): −50°~110°, J4 (Knee pitch): −5°~140°, J5 (Ankle pitch): −30°~52°, J6 (Ankle roll): ±28°
Headroom
Pitch Joint: ±23°, Rotating Joint: ±45°
Capabilities
01
Hot-swappable dual battery system
02
IP54 rated for industrial environments
03
Fleet orchestration via VaultOS
04
Dedicated 5G modem option
