Vaultbots 02 / Available

VaultBot X2 Ultra

Work-grade autonomy.

Starting at
$55,000

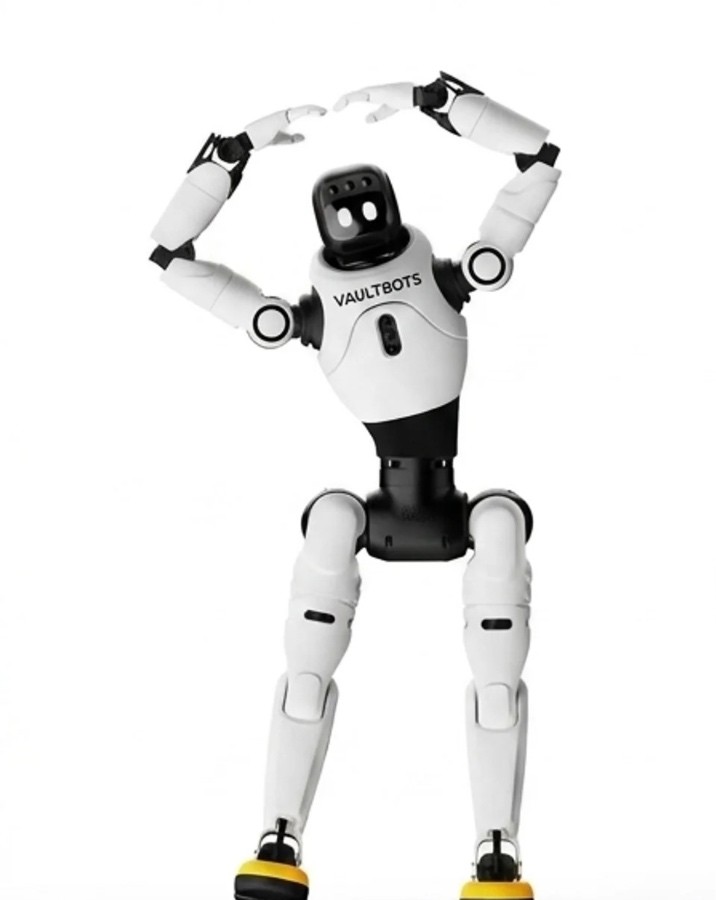

VaultBot X2 Ultra   view 1
1 / 5
Overview

The VaultBot X2 Ultra features powerful capabilities in motion, interaction, and task intelligence. It is tailor-made for guided tours and retail, guided performances, or research & education scenarios, with a variety of optional configurations, enabling broader scenario expansion and flexible application exploration.

Specifications
Dimensions
1310mm (H) × 460mm (W) × 210mm (L)
Height
Approx. 1.31 m
Weight
Approx. 39 kg
Total Degrees of Freedom
30
Neck DOF
1
Arm DOF (per arm)
7
Waist DOF
3
Leg DOF (per leg)
6
Arm Reach
558mm (excluding end effector)
Operating Temperature
−10°C to 40°C
Display
Interactive screen, lighting effects
Peak Joint Torque
120N·m
Walking Speed
Up to 1.8 m/s, typical ≤ 0.8 m/s
Payload Capacity
Max (in specific postures): 3kg, Across full range: ≤ 1kg (excluding end effector)
Battery Capacity
Approx. 500Wh
Operating Time
At 0.5 m/s walking, Approx. 2 hours
Power Supply Method
Direct charging, swappable battery, optional auto-charging dock
Charging Time
≤ 1.5 hours
Input Voltage
100~220V
Charger Output
54.6V 10A
3D LiDAR
Equipped
RGB-D Camera
Equipped
RGB Camera
Interactive RGB + Front dual RGB + Rear RGB
Head Touch Sensor
Equipped
Communication
Wi-Fi, Bluetooth, 4G/5G module
Audio I/O
Microphone array, wireless microphone, speaker
Main Compute Board
RK3588 x2
High-performance Board
Orin NX (157 TOPS)
USB Ports
Type-A x2, Type-C x2
LAN Ports
RJ45 x2
Video Output
Mini DP x1
Power Output
12V/3A x1, 48V/5A x1
Handheld Controller
Included
OTA Updates
Supported
Mobile App
Supported
Secondary Development
Supported
Capabilities
01

Flexible end effectors: optional dexterous hands and grippers for customized application scenarios

02

Autonomous recharging: optional dock with self-navigation and path planning for closed-loop operation

03

BVLOS teleoperation: optional VR accessories for zero-latency remote operation and avatar applications

04

Multi-dimensional mapping: RGBD, interactive RGB, binocular and rear RGB cameras plus LiDAR one pass deploys an entire venue

05

Autonomous navigation with dynamic and static obstacle avoidance

06

Proactive greeting, multilingual explanation and knowledge-base Q&A with 30+ facial expressions

07

Built-in presentation toolchain: zero-threshold editing of scripts, expressions, motions, voice and pacing

08

LinkCraft compatible: zero-code motion training, action imitation and coordinated group performance

09

LinkSoul compatible: customizable personas, wake words and voice tones for tailored business use
